Mailles tissées I

GKD

Mailles tissées I – Diapositive n°1

1992 - 2008

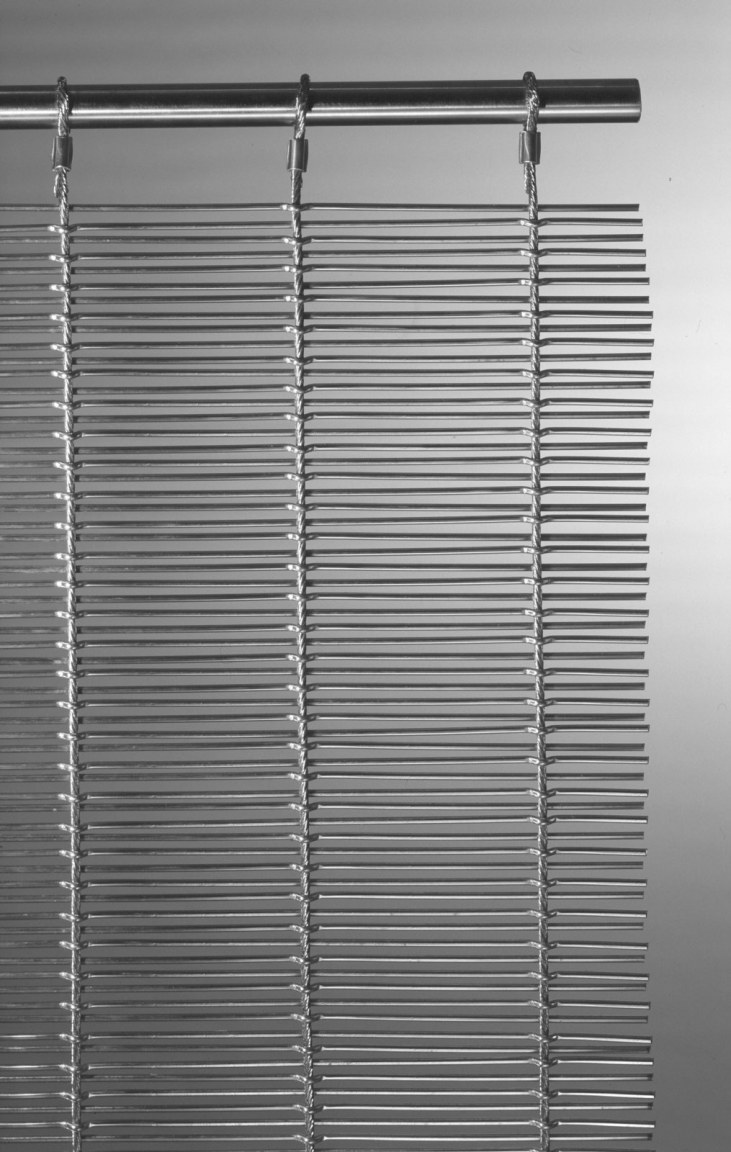

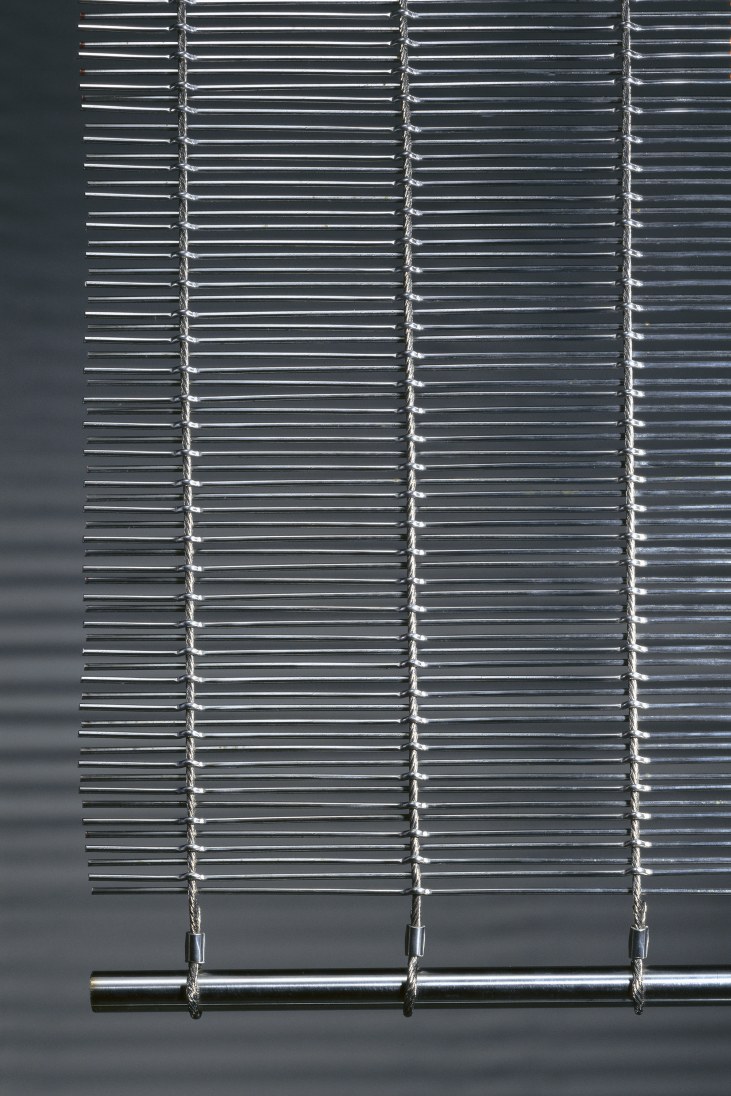

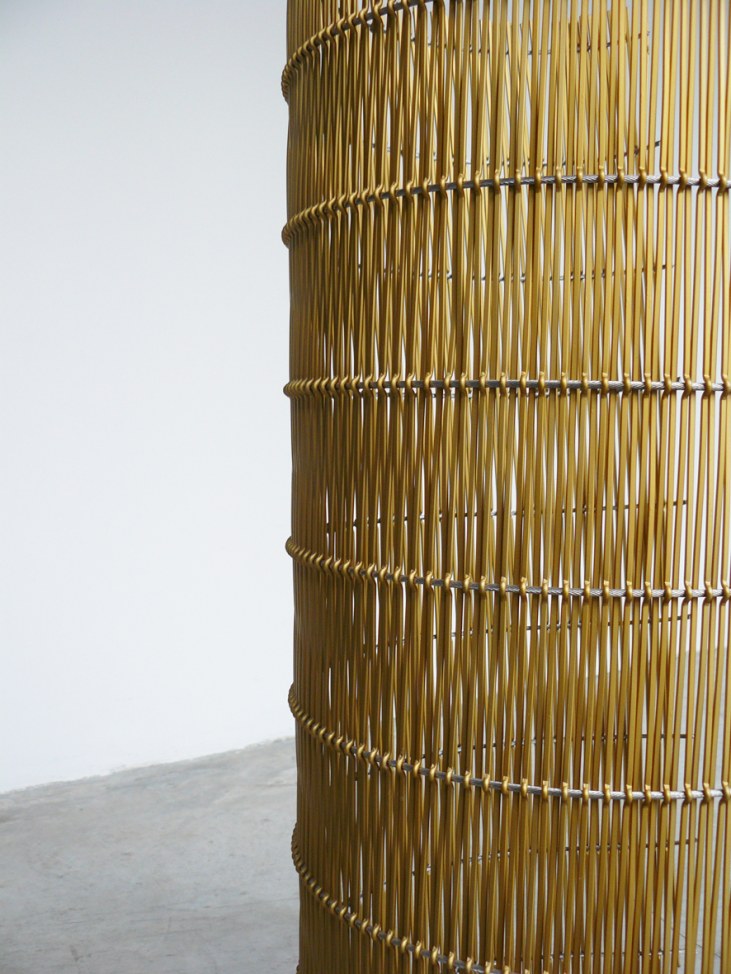

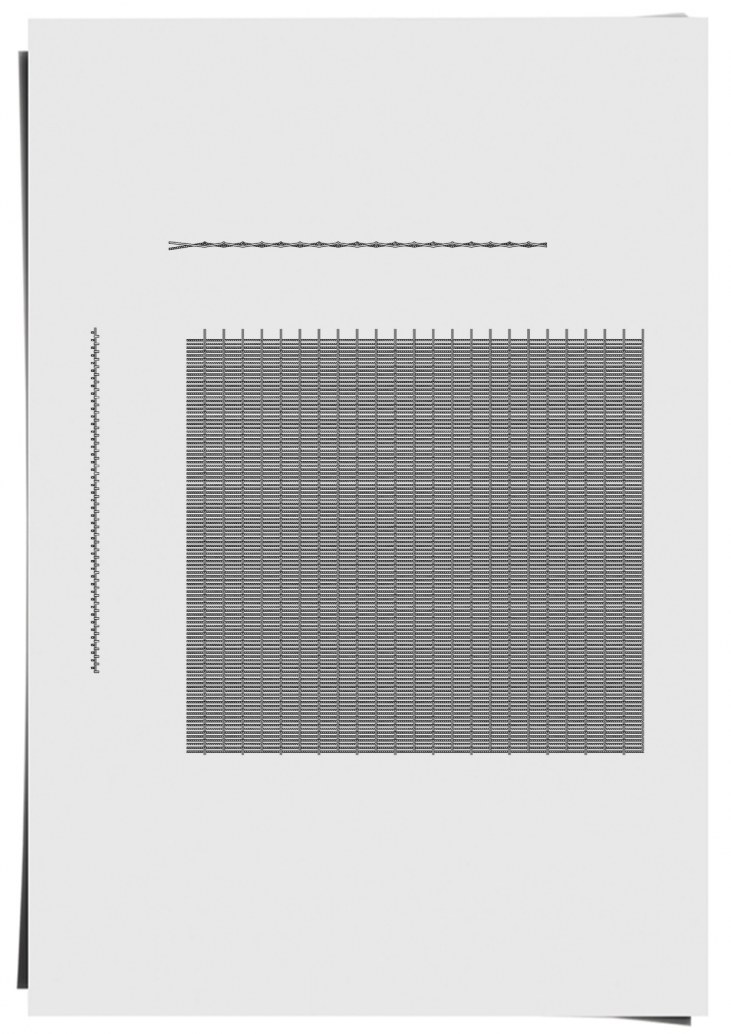

WOVEN MESH "BAMBOO"

GKD

Vertical warp chain in stainless steel, horizontal weft grid in aluminum

Warp thread: 3.5 mm diameter

Weft thread: 3 mm diameter

Spacing of warp threads: 95 mm

Spacing of weft threads: 4.75 mm

Total thickness: 6.5 mm

Opening percentage: 35%

Weight: 4.8 kg/m2

Mailles tissées I
Mailles tissées I
Mailles tissées I

Mailles tissées I – Diapositive n°3

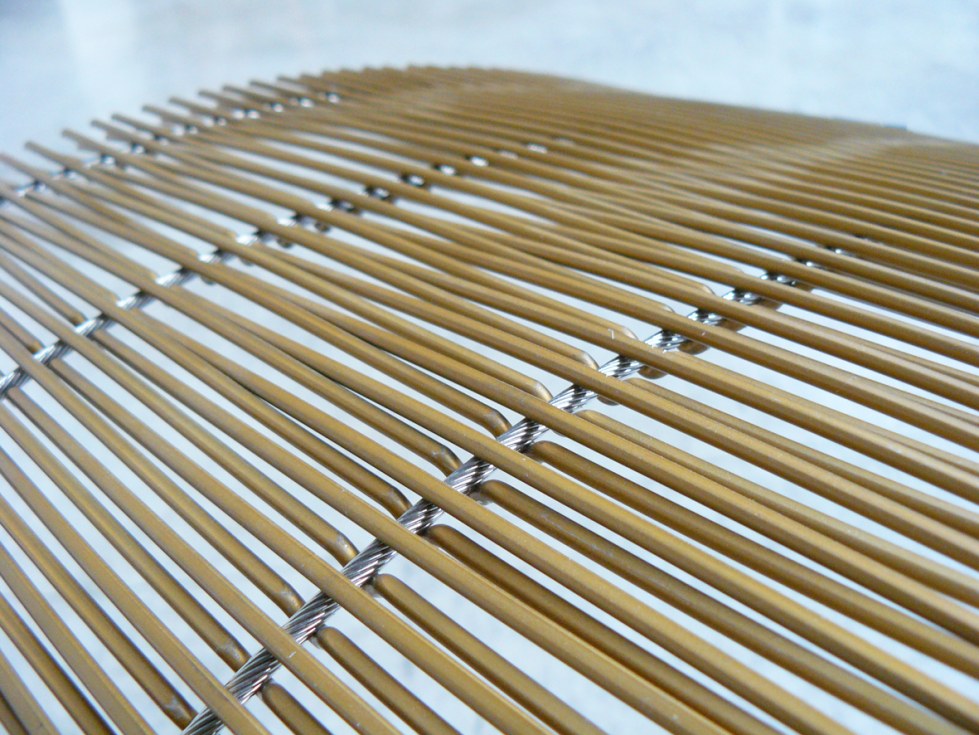

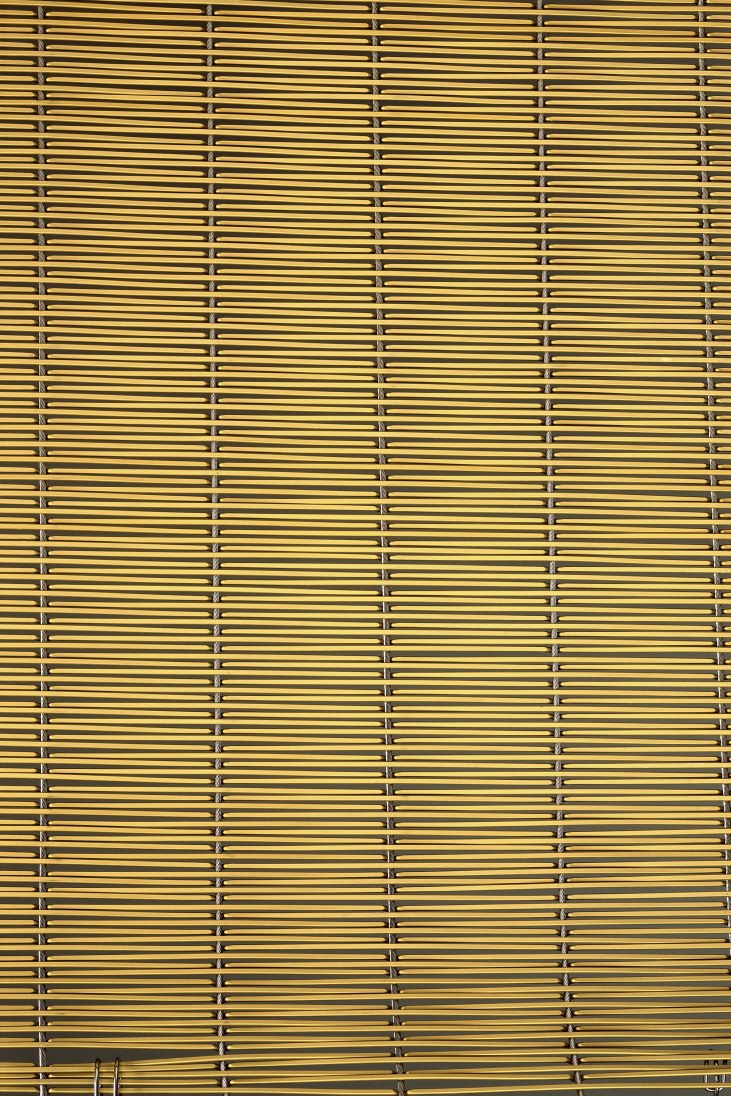

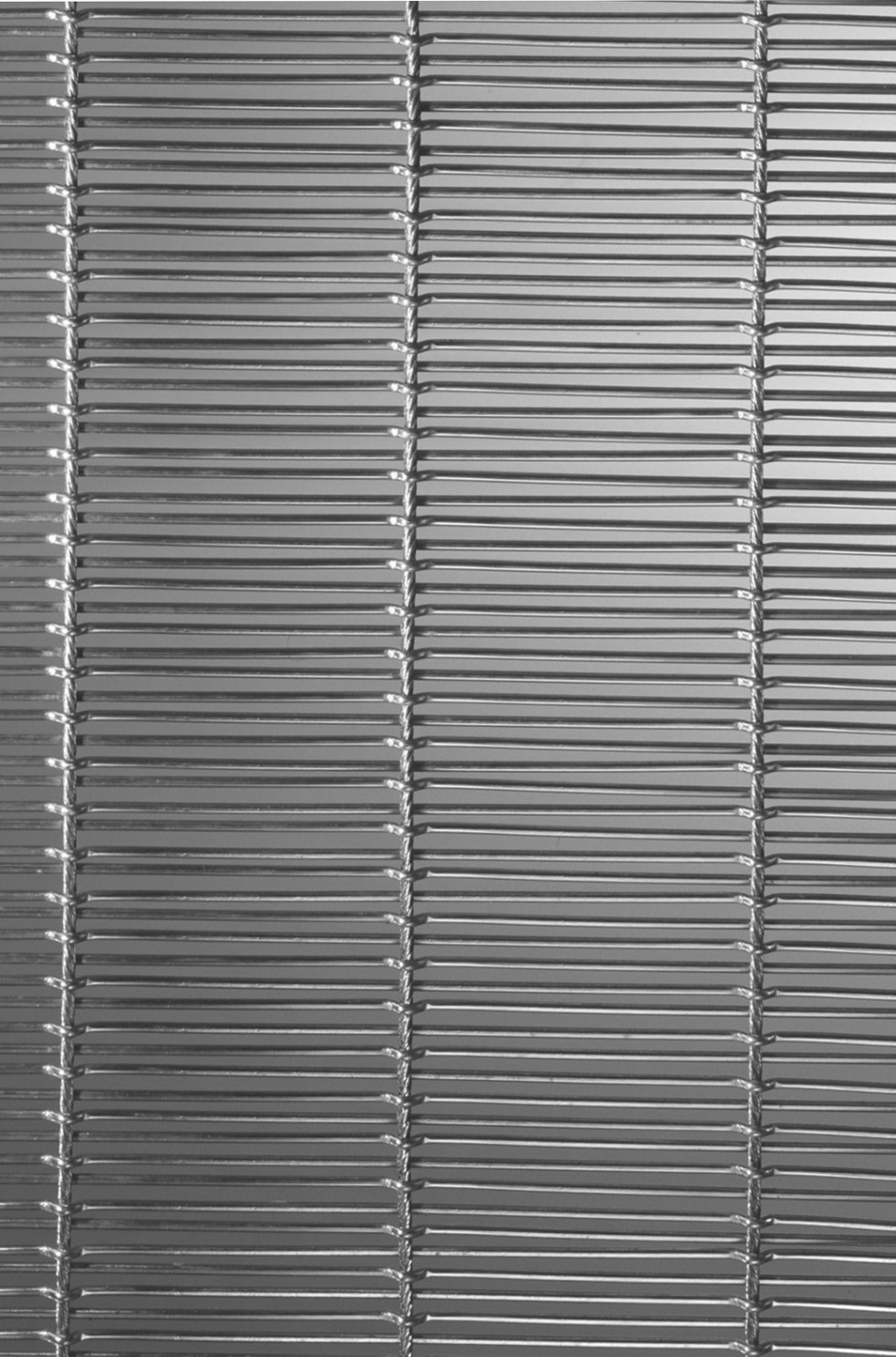

Bamboo mesh, opening 50%

Vertical warp chain in stainless steel, horizontal weft grid in aluminum

Warp thread: 3.5 mm diameter

Weft thread: 3 mm diameter

Spacing of warp threads: 95 mm

Spacing of weft threads: 6 mm

Total thickness: 6.5 mm

Opening percentage: 50%

Weight: 3.7 kg/m2

Mailles tissées I
Mailles tissées I
Mailles tissées I
Mailles tissées I

Mailles tissées I – Diapositive n°5

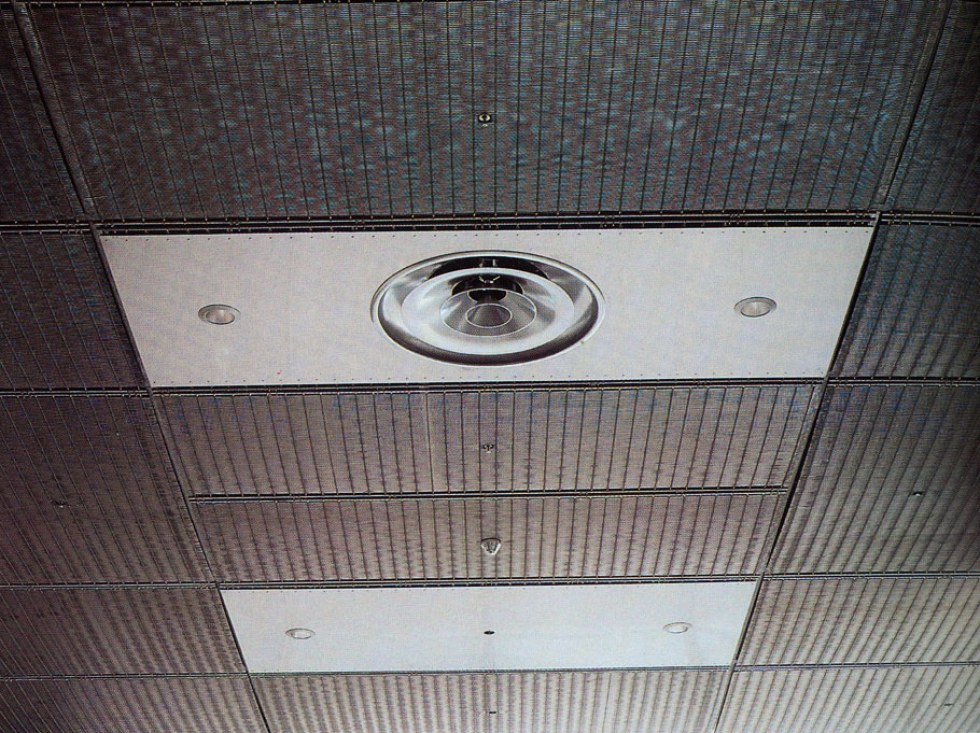

Panels located on the ceiling of the public reading rooms of the Bibliothèque nationale de France

Mailles tissées I
Mailles tissées I
Mailles tissées I
